Laboratory Equipment
Plant Light Analyzer
R 96,450.00
This tester is for plant growth lamp parameters PAR, PPFD testing, it is dedicated to plant lighting measurement, integrated with intelligent professional portability, the measurement is based on the method of long focal length spectral.
Catalogue price shown. Availability, delivery and the final total are confirmed by quotation. Online payments are not yet enabled.
Description & specifications

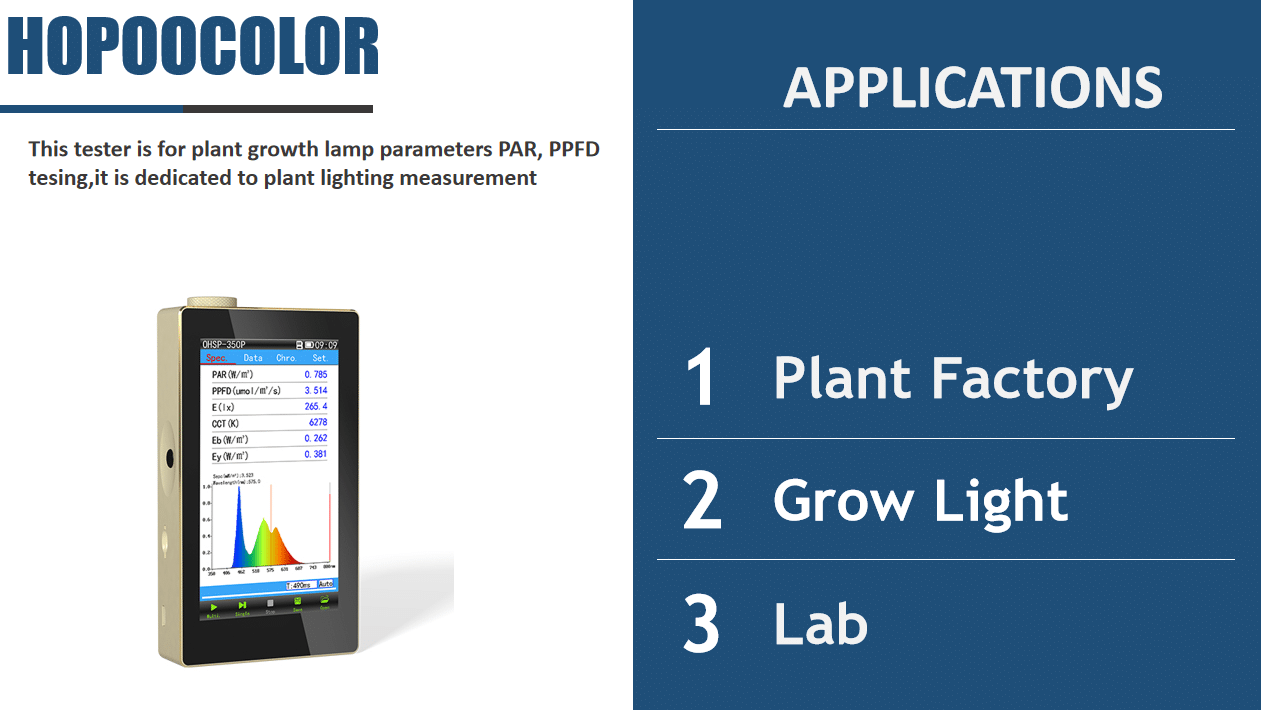

Handheld 350-800nm Plant Light Analyzer PAR Meter
Lead Time: 2-3 Weeks
OHSP350P PLANT LIGHTING ANALYZER
Wavelength range: 350-800nm
This tester is for plant growth lamp parameters PAR, PPFD testing, it is dedicated to plant lighting measurement, integrated with intelligent professional portability, the measurement is based on the method of long focal length spectral. Measuring parameters like light intensity, radiation intensity, chromaticity coordinates, colour temperature, colour rendering index, photosynthetic photon flux density, photosynthetic radiation (shoot), far red irradiance etc. It an be widely used in plant lamp manufacturers, plant soilless cultivation, greenhouse and other plant growth of optical radiation field monitoring etc.
1,characteristic:
* Long focal length optical system, 2 nm optical resolution
* High performance linear CCD sensor 3648 points;
* Automatic zero and zero compensation technology, boot no manual zero;
* Electronic shutter technology, the minimum integration time 50 us, measurable stronger light signal;
* Quick switch machine, a key test, the use of more convenient
* 5 inch high-definition IPS screen, capacitive touch screen, display more content;
* Bring 4000mAh large-capacity lithium battery, 24 hour long test time;
* Illumination and radiation measurement
* CCD with long focal length and wide spectrum, intelligent and portable
* Automatic zero calibration
* Low power consumption large capacity battery
* Wide range of wavelengthscan test various types of light sources
* SD cardcan save a variety of formats Excel data analysis
* Be Suitable for different site test
* A millisecond key switchingmakes it more convenient forusing
* High performance linear CCD sensor 3648 points;
* Automatic zero and zero compensation technology, boot no manual zero;
* Electronic shutter technology, the minimum integration time 50 us, measurable stronger light signal;
* Quick switch machine, a key test, the use of more convenient
* 5 inch high-definition IPS screen, capacitive touch screen, display more content;
* Bring 4000mAh large-capacity lithium battery, 24 hour long test time;
* Illumination and radiation measurement
* CCD with long focal length and wide spectrum, intelligent and portable
* Automatic zero calibration
* Low power consumption large capacity battery
* Wide range of wavelengthscan test various types of light sources
* SD cardcan save a variety of formats Excel data analysis
* Be Suitable for different site test
* A millisecond key switchingmakes it more convenient forusing
application:
Application: Plant growth lamp, LED plant growth light,LED, OLED measurement, CFL energy saving lamp and high and HID low pressure sodium lamps etc
Application: Plant growth lamp, LED plant growth light,LED, OLED measurement, CFL energy saving lamp and high and HID low pressure sodium lamps etc
|
PAR mW/cm2
|
illuminance(lx)
|
|
PPFD Umol/m2/s
|
Candlelight(fc)
|
|
Coordinate x.y u,v u’,v’
|
CRI (Ra)
|
|
Half width(nm)
|
SDCM
|
|
Peak wave(nm)
|
Purity%)
|
|
Half width(nm)
|
CCT(K)
|
|
Central wave(nm)
|
Central wave(nm)
|
