Hotplates- Heavy Duty

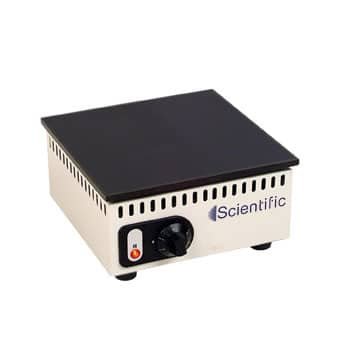

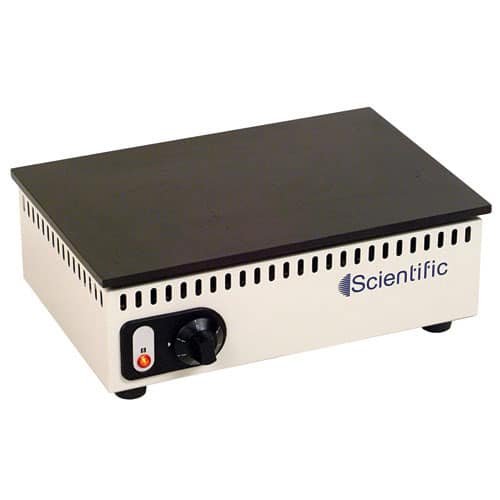

Hotplate Heavy Duty: Model 500

Features:

• Heavy duty mild steel heating top with special coating
• Mild steel body treated for long term resistance to corrosion with an epoxy powder coated finish
• Unique body design to ensure maximum cooling airflow for the controls and wiring
• Suitable for continuous operation
• Variable energy regulator for optimum heat control
• Pilot light for power indication

Technical Data 513

Model No.                                              500               501             502

External dimensions (mm)

Surface Width:                                      300                 450                600

Height:                                                    140                 140                140

Surface Depth:                                      300                 300               450

Electrical connection (V/hz)            230/50           230/50         230/50

Power rating @ 230V (W)                 1500               2000              3000

Gross weight (kg)                                   16                   22                    31
