Laboratory Equipment
Hardness Tester
R 104,000.00
Catalogue price shown. Availability, delivery and the final total are confirmed by quotation. Online payments are not yet enabled.
Description & specifications

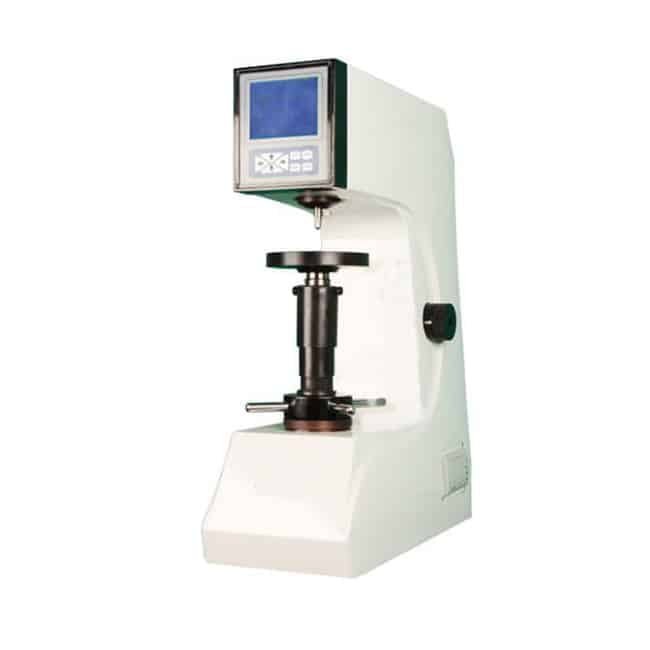

Digital Rockwell Hardness Tester
- HRS-150 Digital Rockwell Hardness Tester is a high-tech product with high precision and stable performance.
- The interface is menu-based, and the operation is simple, intuitive and convenient.
- Widely used to determine the Rockwell hardness of ferrous metals, non-ferrous metals, non-metallic materials, heat treatment materials such as quenching and quenching and tempering.
- Such as hard alloy, carburizing steel, hardened steel, surface hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable casting, soft steel, quenched and tempered steel, annealed steel, bearings and other materials.
Technical Parameters
|
Technical Parameter |
|
|
Initial test force |
98.07N(10kgf) |
|
Total test force |
588.4N(60kgf),980.7N(100kgf),1471N(150kgf)
|
|
Measuring range |
20-90HRA ,20-100HRB,20-70HRC |
|
Holding Time |
1-30s |
|
Maximum height of specimen |
210mm |
|
Indentation center to wall distance |
165mm |
|
Hardness resolution |
0.1HR |
|
Standard |
GB/T230.2,ISO6508-2,ASTM E18 |
|
Dimensions |
510*290*730mm |
|
Net weight |
80kg |
|
Gross weight |
92kg |
